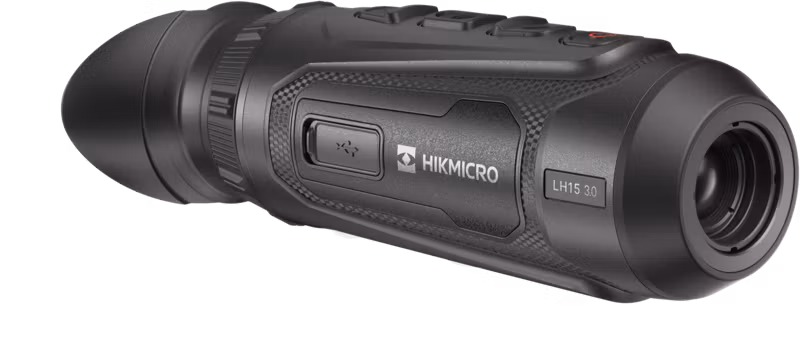

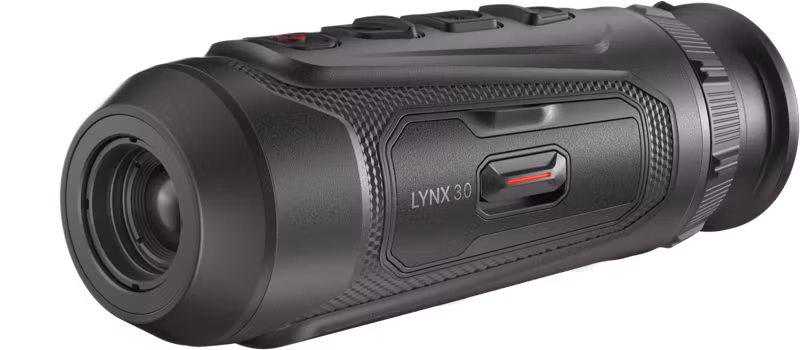

Lynx LH15 3.0 Thermal Monocular

HIKMICRO Lynx 3.0 LH15 Thermal Monocular

The unit features HIKMICRO's Shutterless Imaging System (HSIS), eliminating the brief image interruptions common during thermal calibration. AI-powered Image Pro 3.0 and Zoom Pro algorithms optimize image clarity and detail retention throughout the zoom range. Thermal imagery displays on a 0.39-inch AMOLED at 1024 × 768 resolution with six colour palettes including Black Hot, White Hot, Red Hot, and Fusion.

Built-in features include Hot Track for automatic warm-target highlighting, distance measurement, video and photo capture with audio recording, and 64GB internal storage. The monocular connects via 2.4GHz/5GHz Wi-Fi hotspot for live streaming to the HIKMICRO Sight app. PIP (picture-in-picture) mode is supported.

The replaceable 18650 Li-ion battery provides 5.5 hours of operation with Wi-Fi active at 25°C, or 5 hours at −20°C. Type-C input supports both direct charging and external power supply at 5V/2A. At 296.5g with battery and measuring 156.3 × 53.6 × 49.5mm, the LH15 3.0 is rated IP67 and operates from −30°C to +45°C.

Specifications

• Detector: 320 × 240 VOx, 12μm pixel pitch, 50Hz
• NETD: <18mK (@25°C, F1.0)
• Lens: 15mm F1.0, focus-free
• Detection range: 750m
• Minimum focus: 7m
• Magnification: 2.2× – 17.6×
• Field of view: 11.7° × 8.8° (20.5m × 15.4m @100m)
• Display: 0.39" AMOLED, 1024 × 768
• Eye relief: 20mm
• Diopter adjustment: −5D to +3D
• Storage: 64GB internal
• Battery: 18650 Li-ion, replaceable
• Battery life: 5.5h (@25°C) / 5h (@−20°C)
• Dimensions: 156.3 × 53.6 × 49.5mm
• Weight: 296.5g (with battery)
• Protection: IP67
• Operating temperature: −30°C to +45°C
